Tamiya FIGHTER NXGEN (DT-04 CHASSIS)

Tamiya FIGHTER NXGEN  - DT-04 - 2WD (58741)

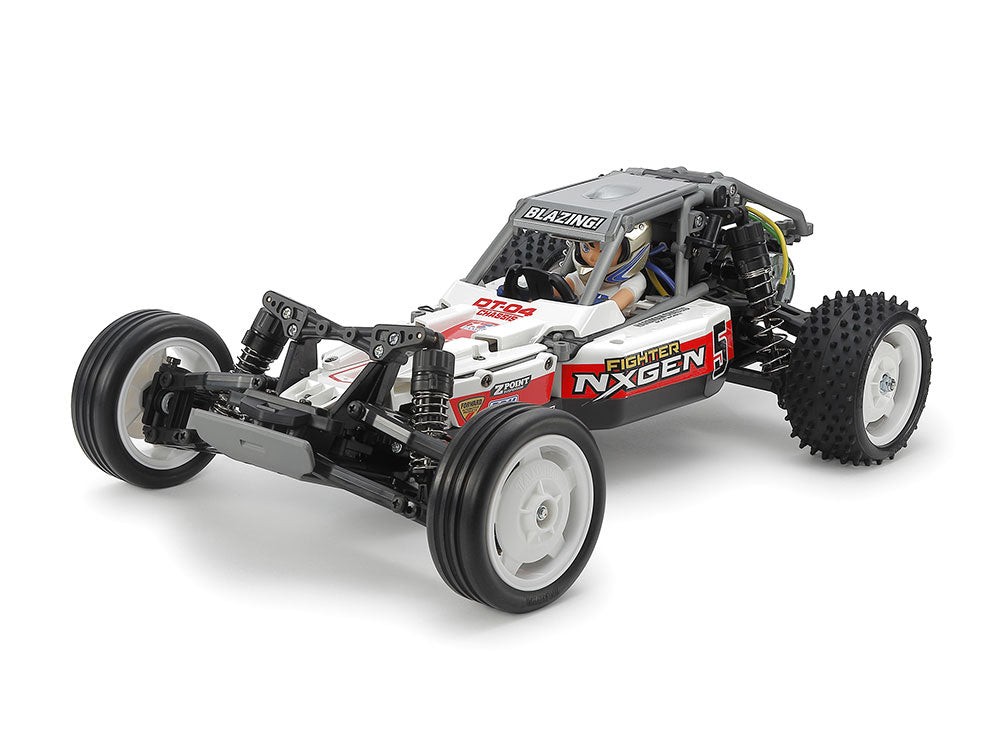

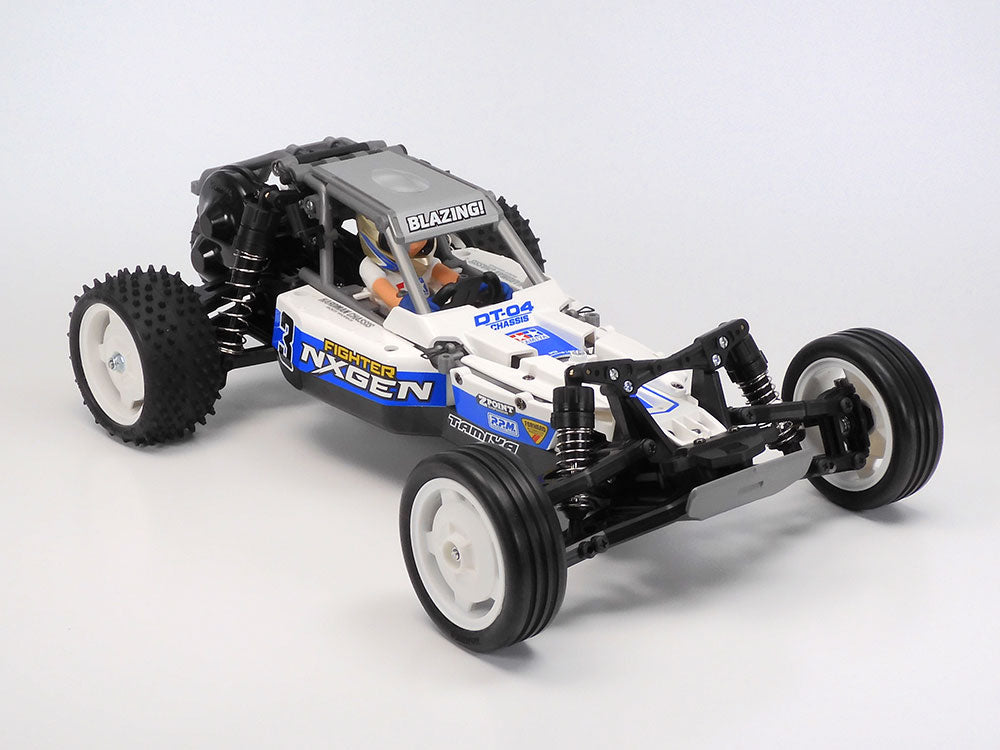

The DT series of chassis and its Fighter Buggy models enjoy great popularity around the world, and have evolved through iterations such as the Fighter Buggy RX on the DT-01 chassis, the Super Fighter G on the DT-02, the Neo Fighter Buggy on the DT-03, and now the Fighter NXGEN on the new DT-04 chassis. Its body is inspired by full size single-seater buggies, and has separate body panels screw-fixed to its frame. A driver figure is also included.

DT-04 Chassis: Lively RWD Performance
This is a rear-wheel drive buggy chassis which offers ease of assembly and lively performance. It has an inline battery pack position, and a rear-mounted motor to give the rear wheels plenty of traction. The sealed gearbox has a built-in gear differential for smooth cornering and helps keep out dust and dirt. Two wheelbases can be selected: 265mm for emphasis on handling or 280mm for emphasis on stability. 4-wheel independent double wishbone suspension with long arms employs CVA oil dampers. Front skid angle is 22.5 degrees to ensure both controllability and powerful performance. The 3-piece steering tie-rod gives true steering. Here, the chassis features ribbed tires on the front, and grippy square spike tires on the rear.






★Length: 395mm (with 265mm wheelbase), width: 245mm, height: 125mm

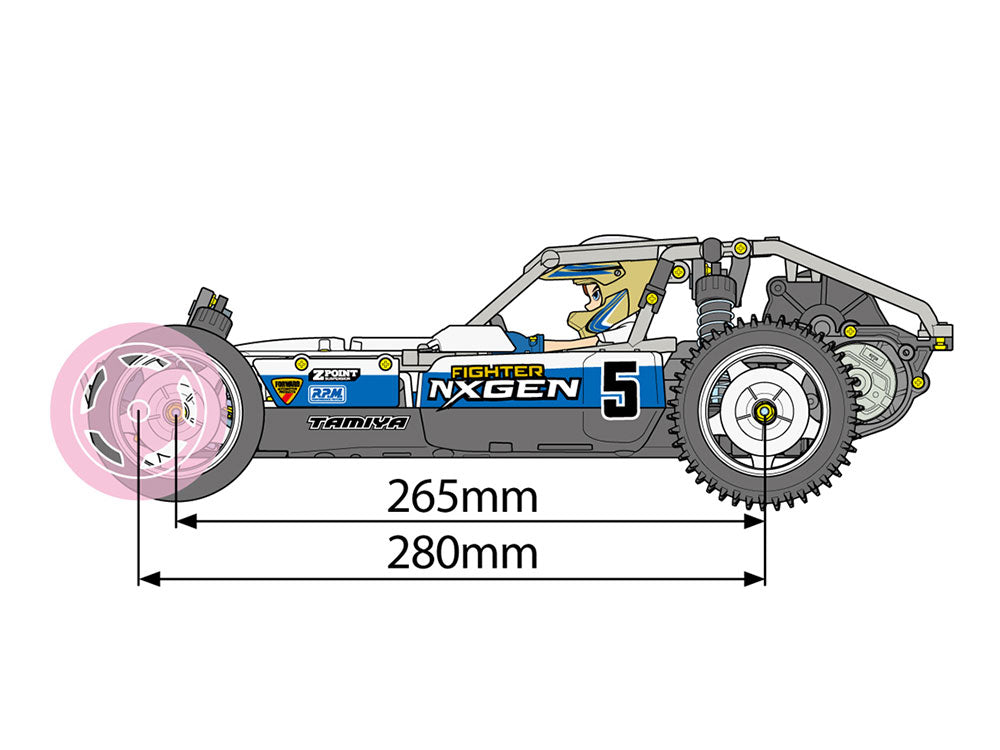

★Wheelbase: 265mm/280mm
★Tread (front/rear): 217mm/204mm
★Tire width/diameter: 27/80mm (front), 41/86mm (rear
★Monocoque frame
★Rear-wheel drive
★3-bevel differential
★3-piece steering tie-rod

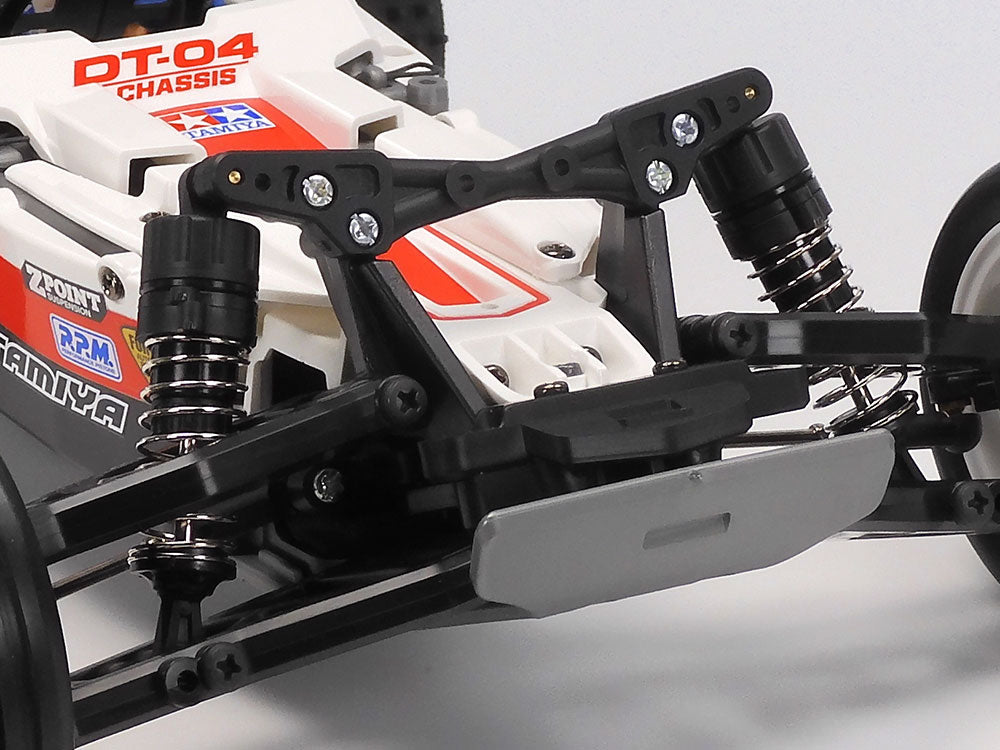

★Front & rear double wishbone suspension with CVA oil dampers
★Gear Ratio = 9.28:1
★Type 540 Motor
★ESC included for export.



Separately Required Items
★2-Channel R/C Unit & Servo
★Battery Pack & Charger
★Paints
